Automatic Joggers bsb l | bsb l Professional

All automatic joggers consist of a stable support, in which the table's up and down movements are precisely guided (no cables are used for stabilization). The jogging table automatically moves into its inclined jogging position and back to working height. All model "L" automatic joggers are equipped with a pneumatic air-expulsion roller with clamping device.

The jogging process is the basis for perfect cutting results and thus significantly contributes to the quality of the final printed product. The process consists of the following work steps: creation of the layers (manually or automatically), aeration of the printed sheets I the stack, highly precise alignment of the printed sheets and finally the air-expulsion.

- Automation solutions for POST-PRESS

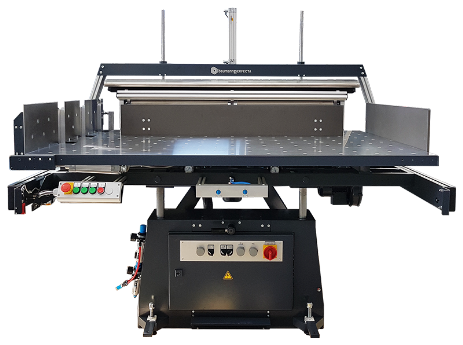

Automatic Jogger

Features

  • The table of the automatic jogger is designed as with a stainless steel air-table

  • Side flap with manual tilt

  • Tiltable both left and right

  • Variable jogging intensity

  • Side flap with pneumatic tilt

  • Manually attachable sheet divider for smaller sheets

  • Count by weight scale mounted under the automatic jogger

options

advantages

  • Latest technology

  • Very comfortable operation

  • Increase in productivity

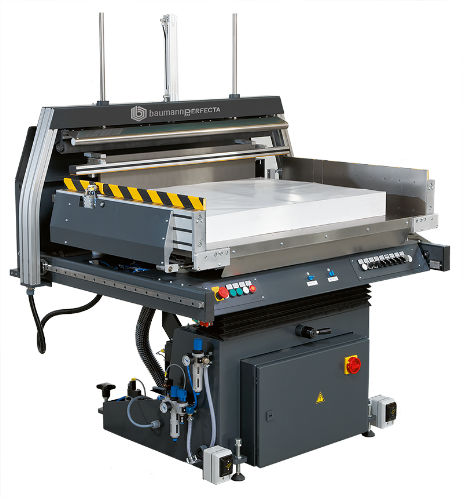

Automatic jogger BSB L professional

The new BSB 3 L professional is able to jog even "difficult" materials, such as metallic paper, pharmaceutical package inserts or labels, much easier and thus quicker than conventional joggers.

  • Additional aeration during the jogging process

  • Margin-free air expulsion

  • Highly planed and micro-perforated table surface

  • Micro-perforated side gauges

  • New, powerful jogging motor

  • New air expulsion roller for very high pressure

  • Layer stabiliser

features

technical data

BSB 3 L BSB 7 L BB 3 L Professional
FORMAT [mm, in] 800 x 1140
31.50" x 55.12"		 1250 x 1650
49.21" x 64.96" 		770 x 1070
30.31" x 42.13"
MAX REAM HEIGHT [mm, in] 160
352.74"		 160
352.74"		 160
352.74"


*The values ​​can vary depending on the equipment / additional options. Technical changes reserved.
