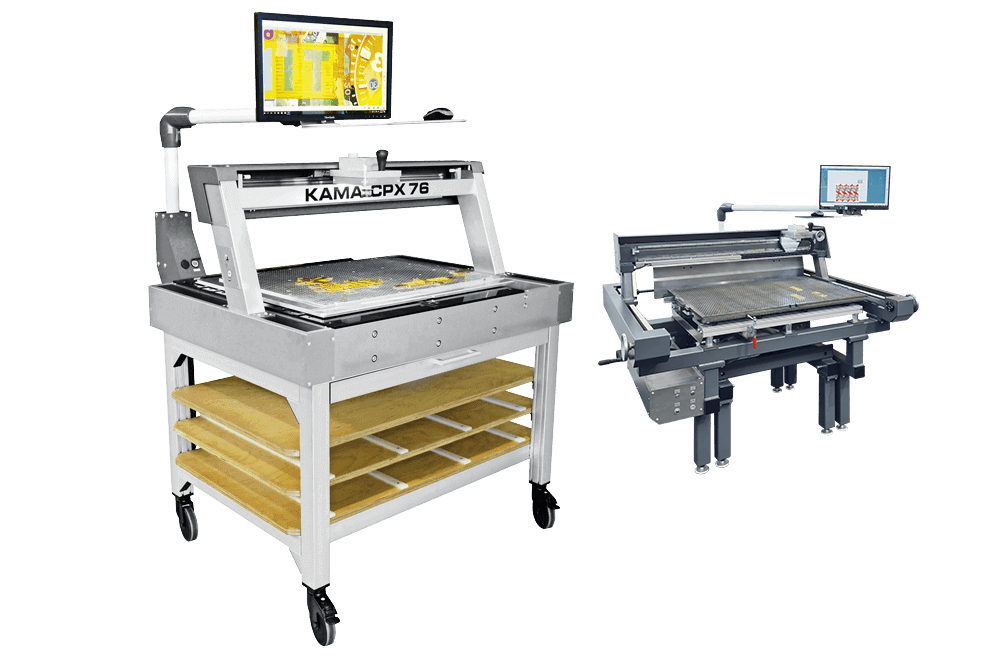

KAMA CPX 76 and CPX 106
For printing companies with frequent hot foil stamping jobs, the CPX is a hot tip for increased productivity. The camera-based positioning system is suitable for all flatbed embossing machines. We offer two formats.
Hot foil stamping
Embossing Braille
Hologram embossing
Digital positioning device KAMA CPX
Professional positioning system for clichés. Now also for embossing systems in B1 sheet format.

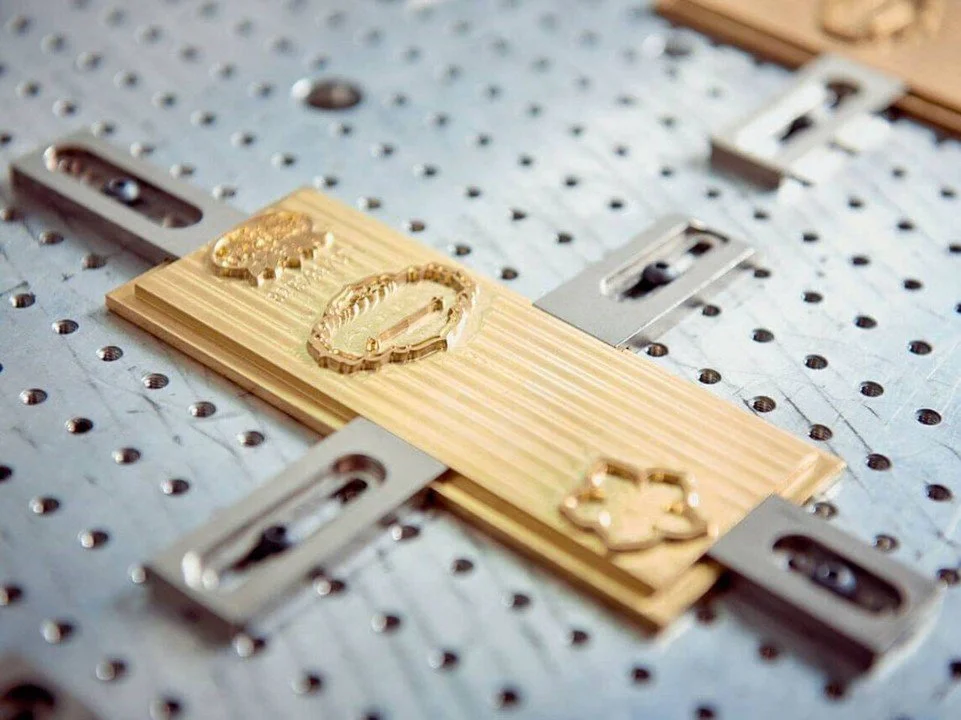

The digital positioning device KAMA CPX accelerates all types of positioning work and is a highly effective time saver: set-up times can be reduced by up to 90%. The clichés are mounted on the embossing plate directly at the temperature-corrected target position calculated by the software.
Additional time savings: The embossing machine remains free for production during positioning work on the CPX and can finish another order in
Advantages
Reduction in set-up time through software-supported positioning outside the embossing machine
Easy handling
The temperature-corrected target position is calculated and displayed by the system
More uptime for the embossing machine
For all positioning work during embossing and finishing with hot foil and hot stamping.
NEW CPX 106 for all common flatbed embossing machines for the B1 sheet format
technical data
| CPX 76 | CPX 106 | |
|---|---|---|
| FRAME SIZE MAXIMUM [mm, in]. | 700 x 855 27.65" x 33.66" | 860 x 1300 33.86" x 51.18" |
| MEASURING RANGE MAXIMUM [mm, in]. | 600 x 785 23.62" x 30.91" | 800 x 1100 31.50" x 43.31" |
| DIMENSIONS (lenght x width x height) [mm, in]. | 1220 x 1120 x 1800 47.24" x 44.09" x 70.87" | 1700 x 1450 x 1800 66.93" x 57.09" x 70.87" |
| DIRECTLY COMPATABLE WITH | ProCut 58 Foil, ProCut 76 Foil, ProCut 76 Foil Packaging | ProCut 76 Foil and Packaging Edition |
| ALSO APPLICABLE FOR | other embossing and hot foil stamping machines | other embossing and hot foil stamping machines |
* Depending on the material, sheet size and die configuration Technical data and figures are subject to change.
