KAMA flexfold 52i
Economically producing digitally printed folding boxes, many SKUs and short runs: We have developed the FlexFold 52i for this booming market. The automatic folding box gluing machine carries out order changes at record speed in just a few minutes. This means that the KAMA FlexFold 52i can process well over a hundred orders a day - whether it is a longitudinally seamed box, pillow packaging or a folding bottom box.
Fold
Inspection
Blind Embossing
Stick
Plasma Treatment
folding box gluing machine FlexFold 52i
The KAMA FlexFold 52i is tailor-made for printing companies and packaging manufacturers who want to offer the following services to large brand manufacturers, but also to regional brands and local suppliers:
Digitally printed folding boxes with changing designs (seasonal, regional or for an event, e.g. food, fashion ...)
Personalized and individualized packaging (e.g. cosmetics and pharmaceuticals)
packaging in different languages
Delivery of partial editions (no storage costs, always up-to-date)
delivery with short time-to-market
The innovative FlexFold 52i was awarded the EDP Award 2017 as “Best Folding Carton Solution” (European Digital Print Association).
Highlights of the FlexFold 52i
job change in record time
To the next order at the touch of a button.
The FlexFold 52i folding box gluing machine adjusts itself fully automatically to the box dimensions of the new order: the feeder, pre-breaker, glue disk and the entire folding and gluing section move automatically to the appropriate positions (KAMA patent). This means that order changes can be made in less than 5 minutes . Another USP: The FlexFold 52i is the only folding box gluing machine that can directly control
the positions for the next order . Reference runs like on other machines are not required, which speeds up order changes even more.
100% inspection
Quality check according to the desired criteria.
For folding boxes, e.g. for the pharmaceutical market, a 100% inspection is essential. KAMA offers various inspection levels with automatic rejection for the FlexFold 52i. Defective blanks are detected and sorted out. The inspection levels:
Testing of glued seams,
barcode and adhesive tab code
to complete inspection of print image, color, text and contamination.
For Print 4.0
Interface to the ERP system for fast data flow.
Short processing times are a big advantage in digital printing - so the workflow must also be fast. For efficient data exchange with the large number of orders, the FlexFold 52i can be networked with your MIS via the Job Manager.
Fast learning
Machine quickly under control.
The high level of automation of the KAMA FlexFold 52i means that new operators can be trained quickly. After a short, steep learning curve, even non-specialists can quickly get to grips with the fully automatic machine.
Movable control panel
Always where the operator needs it.
The control panel of the FlexFold 52i can be easily moved lengthways to the machine – wherever the operator needs it. This saves unnecessary travel and time.
Electronic Order Archive
Once manufactured, always ready for use.
Jobs that are stored in the electronic job archive of the FlexFold 52i can be loaded directly as repeat jobs.

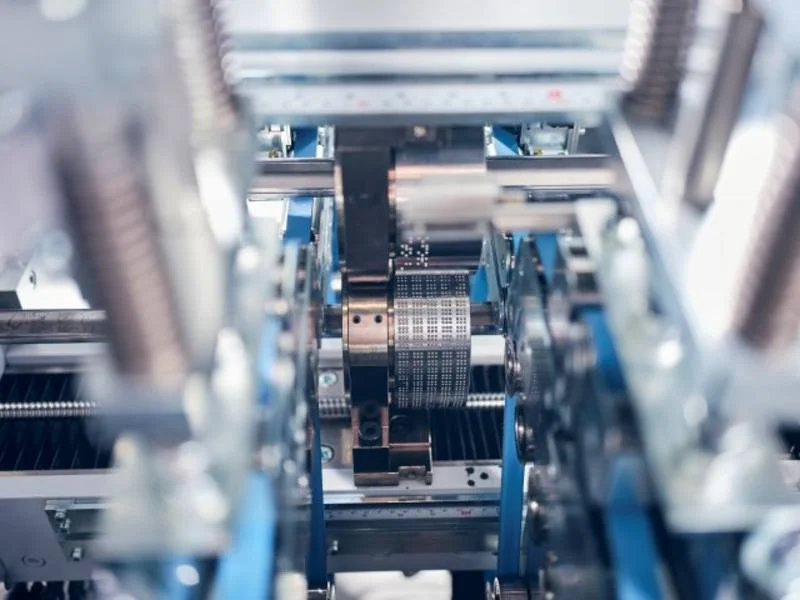

KAMA AutoBraille
Inline Braille embossing with fully automatic positioning.
Position Braille embossing in record time: On the KAMA AutoBraille for the FlexFold 52i, the embossing wheel pair moves fully automatically into position. This is the only system on the market that can do this across the entire width of the machine, so that all possible embossing positions are achieved.
The tool change with automatic feed is also ingeniously solved.
The FlexFold 52i Pharma with AutoBraille is equipped with qualified systems for safety and validation at the highest level (EyeC ProofRunner Pharma, hhs Xtend³) and offers you the fastest order changes for pharmaceutical secondary packaging. The innovative complete solution for an attractive market!
plasma treatment
For smooth surfaces and UV varnish.
With plasma treatment, the FlexFold 52i can also permanently bond sealed and smooth surfaces, such as metallized cardboard and UV-coated boxes. The process is ideal for fold-bottom boxes with multiple adhesive surfaces, which are popular as packaging for cosmetics.
Solid and compact construction
Small footprint, long service life.
The construction of the KAMA FlexFold 52i and all built-in components are designed for stable production and a long service life.
options
Equipment and systems for the FlexFold 52i (selection)
Inline inspection systems i1, i2, i3
Upper nozzle gluing unit
plasma treatment
Network integration via Cockpit and Job Manager software
unit for inline Braille embossing (Q4/20)
technical data
| FlexFold 52i | |
|---|---|
| CARDBOARD* | 180 - 600 gsm |
| MICROWAVE [mm, in]. | 0.4 - 0.9 0.0157" x 0.354" |
| PREFORMANCE* | 250 m/min |
| LONGITUDINAL SEAM BOXES | AUTOMATIC BOTTOM BOXES | |
|---|---|---|
| B MINIMUM [mm, in] | 10 .39" | 35 1.38 |
| A + B [mm, in] | 40 - 250 1.57" x 9.84" | 70 - 250 2.75" x 9.84" |
| H [mm, in] | 50 - 300 1.96" - 11.81" | 50 - 300 1.96" - 11.81" |
* Depending on the material, sheet size and die configuration Technical data and figures are subject to change.
