Loader BaumannPerfecta BB & BB-p
- Fully automatic lifting and separating of reams
More comfort and automation offer our loaders.
The loader or destacker is used for the automatic destacking of the layers. The loading system removes the layer directly from the pallet. Depending on the equipment of the loader, this can be done with pre-adjustable pile heights or with a chip system for exact destacking. The loader then lifts the layer to the required working level and after that automatically transfers them to the table of the jogger, the cutting machine or to other peripheral machines.
Fully automatic lifting and separating of reams - work in full benefit without physical strain on the operator.
The loaders enable the rational, automatic de-stacking of reams, which are then fed to the high-speed cutters. Paper, cardboard, foils and printing plates can be picked up lengthwise or crosswise and via various unstacking methods.
Rear-table loading
Baumann loaders typically load the high-speed cutter via the rear-table. The destacked reams are transported (standard version from the right side) towards the cutter either by a pushing unit "BTE" or by a gripper transport system "BFS".
Front-table loading
When front table loading is desired, the destacked ream is transported semi-automatically towards the cutter either by pusher or manually by the operator (standard version from the right side).

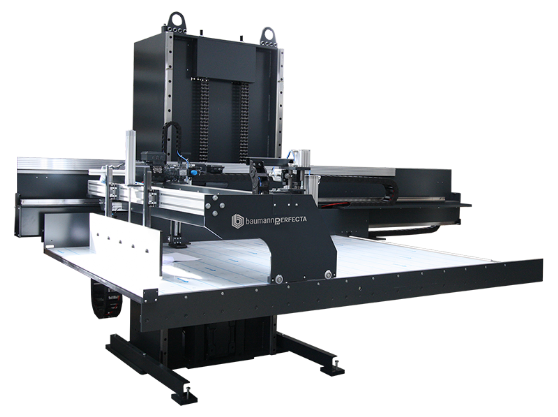

Loader BB
Features
Very high automation level
All relevant parameters can be adjusted to suit the product from the operator's panel
Solid and precise construction
Automatic destacking of small formats is possible
Universal application
advantages
Loader BB-P - Precision
additional Features
Pile height 1800 mm
Including de-stacking system and ream relieving
Reflective light barrier with separating wedges
Pile height 1800 mm (only BB)
Destacking by chips
Processing of two-ups
Pusher system in gripper arm or separate
Safety devices
Maintenance bolt to secure the table in upper end position
Options BB & BB-P
Options BB-P
technical data
| BB 3 | BB 5 | BB 7 | BB 3-P | BB 7-P | |
|---|---|---|---|---|---|
| FORMAT [mm, in] | 770 x 1070 30.31" x 42.13" |
920 x 1300 36.22" x 51.18" |
1250 x 1650 49.21" x 64.96" |
770 x 1070 30.31" x 42.13" |
1250 x 1650 49.21" x 64.96" |
| MAX REAM WEIGHT [kg, lbs] | 150 330.69 lbs |
150 330.69 lbs |
300 661.39 lbs |
150 330.69 lbs |
300 661.39 lbs |
| REAM HEIGHT [mm, in] | 160 6.30" |
160 6.30" |
160 6.30" |
160 6.30" |
160 6.30" |
| PILE HEIGHT [mm, in] | 1400 55.12" |
1400 55.12" |
1400 55.12" |
1800 70.87" |
1800 70.87" |
| PILE HEIGHT OPTIONAL [mm, in] | 1800 70.87" |
1800 70.87" |
1800 70.87" |
1800 70.87" |
1800 70.87" |
Loader prepared for calculating the number of sheets
*The values can vary depending on the equipment / additional options. Technical changes reserved.
