Three-Knife Trimmer SDY TS

The three-knife trimmer SDY TS is the reliable universal machine for everyone who cuts books, brochures, magazines or newspapers of various formats and thicknesses in the offline area. The technological concept of this three-knife trimmer is as simple as effective: By its ease of operation and owing to a robust cast-iron machine frame, this offline three-knife trimmer that is especially suitable for small and medium-sized runs ensures high profitability.

It is GS-certified and has a touch-screen operated PLC control to allow the choice between a continuous mode for two operators or a return mode just for a single operator. The intelligent ServoDrive module is responsible for feeding in the stock by means of an infinitely variable hydraulic feeder clamp. Just feed in your stock and trigger the cut. The swing-away delivery ensures that any interventions into the trimming station for the purpose of changing knives or trimming plates will be made considerably easier. Weight-reduced cast-aluminium trimming plates, preadjustable knife-setting cassettes and control from the touch screen guarantee user-friendly format changing. The use of various options can widen the variety of applications.

Cutting control Cutpit


A graphics-capable touch screen control serves for visualizing all operating functions. Clearly understandable symbols make the machine easy and intuitively to operate.

ServoDrive


The feeder clamp with the baumannperfecta ServoDrive guarantees exact positioning of the stock.

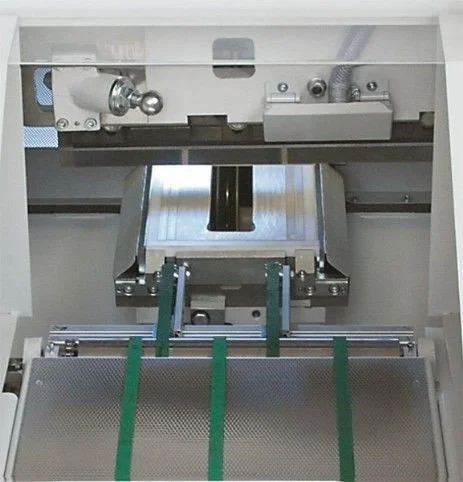

Trimming Plates


Weight-reduced cast-aluminium trimming plates and a unique modular design facilitate quick and easy changing to various formats.

Knife Change

With the aid of the baumannperfecta knife setting device, you can precisely adjust the knives outside the machine in three cassettes. This minimizes machine downtime.

  • The baumannperfecta three-knife trimmer offer two different opertion modes:

    Continuous mode
    The finished pile is automatically pushed onto the delivery on the other side of the machine by the next pile fed in.

    Return mode
    The pile is manually put in the feeder clamp, automatically trimmed and then returned to the operator‘s position where it is unloaded.

  • • Four-side trimming
    In the return mode and by using only one side knife and the front knife, the product can be manually rotated and trimmed at all four sides. The formats can be set by entering the dimensions through the touch screen and by readjusting the head gauge.

    • Delivery extension
    The delivery line can be extended by various modules, depending on what the customer needs.

    • Side table for extending the front table
    With a mobile side table, products can be transported, buffered or stored. This provides more work and storage space.

    • Large-size format
    The use of extended side knives, an enlarged trimming plate and of a specific clamping show allows large formats of up to 350 mm x 500 mm to be processed.

    • Small-size format
    Small formats down to 50 mm x 60 mm can be processed with the aid of modified back gauges of the feeder clamp, a small-size format trimming plate and by a specific clamping shoe.

    • Carbide-tipped knives
    The baumannperfecta carbide-tipped knives are ideal for the processing of various materials. Compared with standard HSS knives, carbide-tipped knives are extremely resistant and guarantee longer lifetimes. We also offer the corresponding cutting sticks that match to the knives.

    • Silicone sprayer
    Within the range where the head and tail knives come into contact with the book spine, they can be sprayed with silicone to prevent glue from sticking to them. The number of cuts per spray shot can be selected.

    • Waste conveyor belt
    A conveyour belt located under the delivery ensures automatic disposal of the trimming waste.

    • Hopper
    The hopper must be manually filled with products. A feeding device automatically takes the stock and transfers it to the feeder clamp. The advantage is that both the hopper and the delivery unit can be operated by one person.

    • Split cutting
    Multiple-ups can be processed by a split cutting device. The pile split off is returned to the operator by a two-up carriage and manually put in the feeder clamp again.

    • Accessories trolley
    This trolley ensures easy stowing of all accessories required.

technical data

Three-Knife Trimmer SDY TS
MAX. TRIMMING PERFORMANCE [trims per min] 25 T/min*
MAX. UNTRIMMED FORMAT [mm, in] 345 x 520
13.58" x 20.47"
MAX. FINISHED FORMAT [mm, in] 300 x 420
11.81" x 16.54""
MIN. FINISHED FORMAT [mm, in] 70 x 80
2.76" x 3.15"
MAX. FEED HEIGHT [mm, in] 110
4.33"
MAX. TRIMMING HEIGHT [mm, in] 100
3.94"
CLAMPING FORCE [kN] 3 - 25
MAX. FEEDER CLAMP FORCE [kN] 0.7
MAIN DRIVE POWER [kW] 3
WEIGHT [kg, lbs] 3250 kg
7165.02 lbs
DIMENSIONS [mm, in] 2924 x 2628
115.12" x 103.46"


*The values ​​can vary depending on the equipment / additional options. Technical changes reserved.
